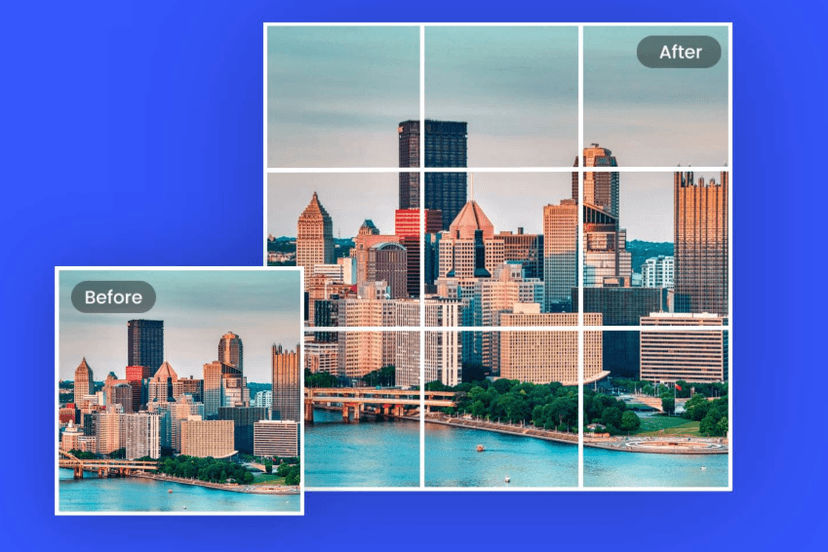

What Is an Image Splitter?

An image splitter (also called an image slicer or image grid maker) is a tool that divides a single image into multiple equal rectangular sections based on a user-defined grid of rows and columns. Each resulting section is a precise, lossless crop of the corresponding pixel region of the original image — no resampling or quality loss occurs within the sections themselves.

Splitting is distinct from cropping: instead of selecting one region and discarding the rest, splitting retains all regions of the original image and distributes them across multiple separate output files. The sum of all split sections, when placed back together in their original grid positions, exactly reconstructs the original image.

ImageToolo's free image splitter processes all splitting within your browser using the HTML5 Canvas API. No images are ever transmitted to any server. The tool is free, unlimited, produces no watermarks, and requires no registration.

How to Split an Image in 3 Steps

1. Upload your image — Drag and drop any image file (JPG, PNG, WebP, AVIF, GIF, BMP, or SVG) onto the upload area, or click to open your device's file browser. The image loads immediately into the live preview.
2. Set your grid configuration — Enter the number of rows and columns you want, or select a preset (2×2, 3×3, 4×4, 1×3, and others). The grid overlay appears on the image preview immediately, showing exactly how the image will be divided before you commit to splitting.
3. Split and download — Click Split. All sections are generated instantly within your browser. Click individual section previews to download each section separately, or click Download All to receive every section in a single ZIP archive. No watermarks, no server upload required.

How Image Splitting Works Technically

Splitting uses the HTML5 Canvas API to perform a series of crop operations. For a grid of R rows and C columns, the tool calculates:

• Section width = Math.floor(imageWidth / columns) pixels for each section, with any remainder pixels added to the rightmost column.
• Section height = Math.floor(imageHeight / rows) pixels for each section, with any remainder pixels added to the bottom row.

For each cell in the grid (row i, column j), the tool draws the corresponding pixel region of the source image onto a new Canvas of the section's dimensions using drawImage(sourceImage, sourceX, sourceY, sourceWidth, sourceHeight, 0, 0, sectionWidth, sectionHeight). The Canvas is then exported as an image file. Because the source and destination dimensions are identical for each section (no scaling), the pixel data is a direct, lossless copy of the source region — no interpolation or quality degradation occurs.

The process repeats for all R × C sections. For a 3×3 grid, 9 separate Canvas operations produce 9 output files. A ZIP archive is assembled in the browser using JavaScript and offered for a single download.

Grid Size Reference — When to Use Each Configuration

1×2 — Two Horizontal Halves

Splits the image into a top half and a bottom half. Use for showing "before and after" comparisons laid out as two vertically stacked images — the top image shows the before state, the bottom shows the after state. Also useful for splitting recipe photography (ingredients on top, finished dish on bottom) or any content with two distinct horizontal zones.

2×1 — Two Vertical Halves

Splits the image into a left half and a right half. Use for side-by-side comparison layouts when both halves will be displayed as equal-width adjacent panels. Common in product photography (front view left, side view right) and real estate photography (exterior left, interior right).

1×3 — Three Horizontal Strips (Panorama Split)

Splits a wide panoramic image into three horizontal slices for use as a sequential Instagram or LinkedIn carousel post. Upload the panorama (ideally in 3:1 or wider aspect ratio), split 1×3, and post the three sections as sequential slides. Viewers swipe through the three slides and experience the full panorama sequentially. This format achieves consistently higher carousel engagement than single-image posts because viewers must swipe to see the full image.

3×1 — Three Vertical Strips

Splits a tall portrait image into three vertical strips. Use for displaying a single tall image across three Instagram posts that appear as adjacent columns in the profile grid — when combined with the 3×3 technique, the vertical strip split allows even more creative profile grid storytelling.

2×2 — Four Equal Squares

Splits the image into four equal quadrants. Use for creating balanced quad image layouts in presentations, for publishing a single visual across exactly four social media posts, for creating a 4-tile puzzle reveal sequence, or for dividing a product image into four detail shots that can each be captioned independently.

3×3 — Nine Sections (Instagram Profile Grid)

The most popular split configuration. Divides one image into nine equal sections for the classic Instagram profile grid effect, where sequential posts of the nine sections form one large cohesive image across the 3-column profile grid. This is one of the most recognizable Instagram aesthetic techniques — a coordinated profile where the grid reads as one large visual rather than individual unrelated posts.

4×4 and Larger — Detailed Tiling

Large grids (4×4 = 16 sections, 5×5 = 25 sections, and larger) are used primarily for print tiling — dividing a large-format poster, banner, or map image into multiple sheets that can be printed on a standard home printer and assembled. They are also used in web applications for creating map tile systems used in interactive zooming map interfaces.

Creating the Instagram Profile Grid — Complete Setup Guide

The Instagram profile grid is a feed strategy where multiple sequential posts each contain one section of a large single image, so the profile page (which displays the 9 most recent posts in a 3-column grid) reads as one coherent large image rather than separate individual posts.

Here is the complete step-by-step process:

1. Prepare the source image. The source image should be square (1:1 aspect ratio) or any aspect ratio divisible into 3 equal columns and 3 equal rows without remainder. For maximum resolution per section: use 3240×3240 pixels (1080 × 3 = 3240) to produce nine 1080×1080 pixel sections — the exact Instagram single-post optimal resolution that avoids any rescaling by Instagram's servers.
2. Select 3 rows and 3 columns in the splitter. Verify the grid overlay in the preview aligns with your intended visual composition. Make sure important subjects in the image are not split awkwardly across section boundaries — especially avoid faces and text being cut in the middle of a grid line.
3. Download the ZIP archive. The sections are labeled by position — section-1-1 (top-left), section-1-2 (top-center), section-1-3 (top-right), section-2-1 (middle-left), ..., section-3-3 (bottom-right).
4. Upload to Instagram in reverse order. Instagram's profile grid fills from right to left, bottom to top — the most recently posted image appears in the top-right slot of the profile grid. To reconstruct the image correctly, post sections in this order: 3-3, 3-2, 3-1, 2-3, 2-2, 2-1, 1-3, 1-2, 1-1. The last post (section 1-1, the top-left) completes the grid and the full image becomes visible.
5. Post all nine within a short timeframe. If other posts are published between the grid sections, they will disrupt the grid layout by appearing in the middle of the pattern. Commit to the full 9-post grid before posting any other content.

Creating Panoramic Carousel Posts

A panoramic carousel is a different use of the image splitter — optimized for sequential carousel posts where viewers swipe through sections to experience the full image from left to right (or right to left).

How the carousel split differs from the grid split:

• Use a landscape or ultrawide image (1×3 or 1×4 split — three or four horizontal sections) rather than a square image.
• Post sections in left-to-right order — section 1 (left) published last so it appears as the first visible post in the feed, and viewers naturally swipe right to see sections 2 and 3 in sequence.
• Plan the composition with swipe boundaries in mind — avoid cutting a key visual element (face, product, logo) exactly at the edge where two sections meet, as the swipe transition line appears there.
• Instagram carousel posts allow up to 10 slides, so you can create very wide panoramas split into up to 10 sequential sections.

Print Tiling — Printing Large Images in Sections

Print tiling is the process of dividing a large-format image into multiple sections that each fit on a standard paper size (A4, Letter, A3) for printing on a home or office inkjet or laser printer. The printed sheets are then assembled — trimmed and aligned — to create the full large-format image.

Typical use cases for print tiling include:

• Printing large posters at home (movie posters, event posters, photography prints) that exceed standard paper sizes.
• Printing large-format maps, architectural drawings, or technical diagrams.
• Creating wall-spanning photo murals from a single high-resolution image.
• Printing large banners and signs for events where the printer cannot handle the required output size natively.

For print tiling, the key calculation is determining the grid to use based on the target paper size and image resolution. For A4 printing at 300 DPI (print-quality standard), each sheet can accommodate 2480×3508 pixels. A 9920×7016 pixel source image would tile perfectly into a 4×2 grid (4 columns, 2 rows), producing 8 A4-sized sections.

When printing tiled sections, add a small overlap margin (5–10 mm on each edge where sections meet) to give yourself material for alignment. Print at maximum quality, allow the ink to dry, trim the inner edges with a straight-edge cutter, and align the sections on a flat surface, taping the reverse side.

Professional Use Cases Beyond Instagram

Puzzle and Game Assets

Digital jigsaws, memory matching games, and quiz-reveal games use image splitters to divide a photograph into puzzle pieces. Split a high-resolution image into a 4×4, 5×5, or custom grid — each section becomes one puzzle tile. The numbered sections make it straightforward to implement a tile-shuffling algorithm or card-matching game in applications.

Map Tile Generation

Interactive web maps (like those built with Leaflet.js or OpenLayers) use a tile pyramid system where the map at each zoom level is divided into 256×256 or 512×512 pixel tiles arranged in a grid. A high-resolution map image can be pre-processed using an image splitter to produce the base zoom level tiles. For production map tile generation at multiple zoom levels, dedicated tools like GDAL2Tiles are used — but for small interactive maps using a single zoom level, the image splitter provides a quick no-code solution.

Website Image Slicing (Legacy Workflow)

Before CSS and JavaScript made it practical to use single images with CSS positioning for layout, designers in the early 2000s through mid-2010s would create full-page website designs as single images in Photoshop, then slice (split) them into individual image files for each button, header section, navigation element, and content region. These slices were then assembled in HTML using table layouts or CSS positioning. While this workflow has been replaced by modern responsive design techniques, the image splitter remains useful when creating individual image assets from a composite design mockup.

Infographic Distribution

Long-form vertical infographics — common in healthcare, finance, and education publishing — are often too tall to display well on social media as single images. Splitting the infographic into 2–4 vertical strips creates individual sections that can each be posted as separate carousel slides or individual posts, with each section containing a coherent standalone piece of the infographic content.

Photography Large Print Series

Fine art and commercial photographers create split-print series — a single photograph divided into 2, 3, or 4 panels, each framed and hung side-by-side on a wall to form one large image. This is a popular format for living room and hotel room decorative photography. The image splitter prepares the individual panel files for sending to a print lab or large-format printer.

What Dimensions Should My Source Image Be?

For the cleanest, most even splits, prepare your source image with dimensions that are exact multiples of the grid you intend to use:

• 3×3 Instagram grid at 1080px per section: 3240×3240 px (3 × 1080 × 3 × 1080). Each of the 9 sections is exactly 1080×1080 px.
• 1×3 panorama carousel at 1080×1080 px per slide:3240×1080 px. Each of the 3 sections is exactly 1080×1080 px.
• 4×4 grid (16 sections, general use): Any image width and height divisible by 4. Example: 4000×3000 px → 1000×750 px per section.
• For print tiling at 300 DPI A4 (2480×3508 px per page):2-column × 3-row print = source image of 4960×10524 px exactly, producing 6 printable A4 tiles.

If the source image is not an exact multiple of the grid, the rightmost column sections and bottom row sections will be slightly larger than the others (they absorb the remainder pixels). This is visually imperceptible for most uses but matters for pixel-perfect print tiling.

Privacy — All Processing Happens in Your Browser

The ImageToolo image splitter performs all splitting operations entirely within your browser using the HTML5 Canvas API. No image data is ever transmitted to any server at any point. The tool works fully offline once the page has loaded. Your images and all split output sections remain completely private on your device.
